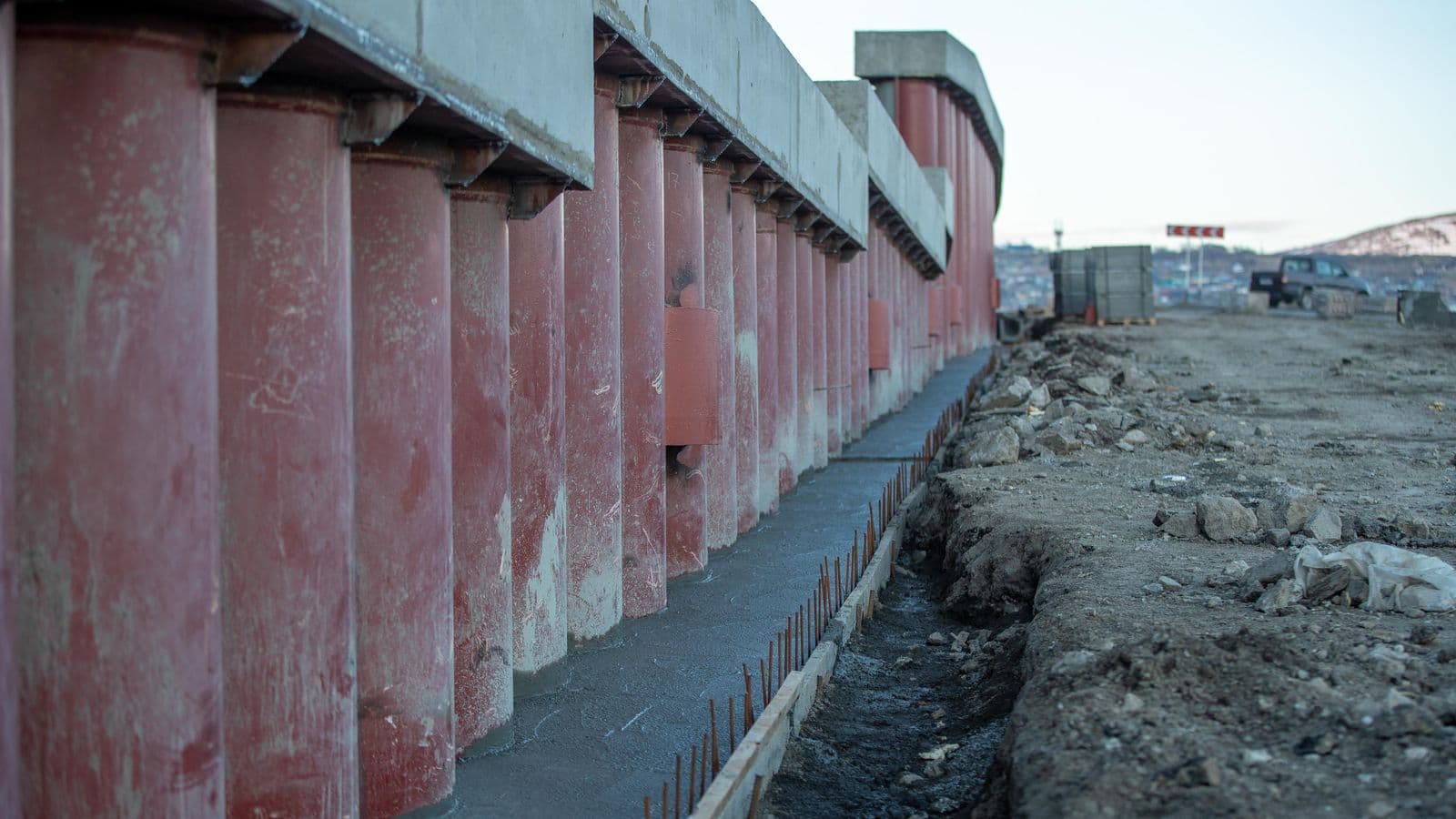

Gravity vs Cantilever Retaining Walls

How gravity walls actually stay up

A gravity wall is just a heavy object that soil can't push over. No steel, no clever geometry — the whole thing works because it weighs enough that the horizontal soil pressure behind it can't slide or tip it. Segmental blocks, stacked stone, boulders, mass concrete, pressure-treated timber: all gravity systems, and all built the same conceptual way, course by course, straight up.

The engineering that goes into a gravity wall is really just proportions. Widen the base and you add weight and resistance to sliding; you also push the resultant force further back toward the toe, which improves overturning resistance. That's why almost every gravity wall design guide lands on a base width of roughly half to three-quarters of the exposed height. A 3 ft wall wants a base around 18-24 in wide. Push that same logic to 6 ft and you need a base pushing 4 ft — which is a lot of excavation and a lot of block for a wall you can no longer see much of above grade.

This is also why gravity walls have a natural ceiling. Past about 4-6 ft, the base footprint required to keep the wall stable becomes impractical for most residential lots, and the labour and material cost curve bends sharply upward. Our gravity wall sizing guide goes through the base-width math in more detail if you want the full derivation.

How cantilever walls cheat the weight problem

A cantilever wall looks like an upside-down T or L in cross-section: a thin vertical stem cast onto a wide horizontal footing. The trick is the heel — the part of the footing that extends back under the retained soil. Instead of the wall material itself providing all the resisting weight, the soil sitting on top of the heel becomes part of the system. That soil mass, plus the concrete, is what fights the push from the retained side.

Because you're borrowing the weight of soil you were going to move anyway, the stem itself can be dramatically thinner than a gravity wall of the same height — often 8-12 in versus a gravity wall's multi-foot base. That's the whole reason cantilever walls scale so much better with height: material grows roughly linearly with height rather than with height squared, which is closer to how a gravity wall's footprint expands.

The trade-off is that a cantilever wall is a real structural design job. It needs reinforcing steel sized for bending moments at the stem-to-footing joint, a footing sized for bearing pressure and sliding/overturning checks, and usually a stamped set of drawings before a building department will issue a permit. Our engineering basics guide covers the three checks — sliding, overturning, bearing — that any engineer runs on a wall like this.

"Segmental and cast-in-place gravity systems are governed by the same fundamental soil mechanics as reinforced structures, but the design approach differs because a gravity wall relies on its own mass rather than reinforcement to resist lateral earth pressure." — adapted from the CMHA Design Manual for Segmental Retaining Walls, the successor publication to the NCMA manual

Cost, complexity, and height at a glance

Labour is where the gap really shows. A DIY-friendly segmental block wall under 4 ft can often be built over a weekend with hired equipment for the base prep. A cantilever wall needs formwork, rebar placement inspected before pour, and usually a concrete crew — closer to a week of scheduled trades than a weekend project. Check costs with the concrete retaining wall calculator before you commit to either path.

A decision framework that actually works

Forget the marketing brochures for a second — the decision usually comes down to three questions.

1. How tall does it need to be, measured from footing to top? Under 4 ft, gravity almost always wins on cost. Over 4 ft, you're likely triggering a permit and engineering review anyway, so cantilever (or a reinforced/geogrid SRW) starts to make more sense structurally. 2. How much room do you have behind the wall? Gravity walls need that wide base. If the wall sits right on a property line or next to a driveway, there may not be physical room to build the base a gravity design needs. 3. Is there a surcharge? A driveway, patio, shed, or parked car load behind the wall changes the pressure calculation significantly, and most gravity-wall rules of thumb assume no surcharge at all.

• Up to ~4 ft, good soil, room to spread the base: gravity wall wins on cost and simplicity.
• Over 4 ft, tight space, or a surcharge: cantilever (or reinforced SRW) wins.

Soil type matters too. Sandy, well-draining soil behaves differently under a footing than dense clay, and bearing capacity assumptions change accordingly — the USDA NRCS Web Soil Survey is a free way to check the general soil classification for your property before you start sizing anything.

Worked example: the tight lot that forced a switch

A homeowner in a fairly typical 1970s subdivision needed to hold back a 5 ft grade change along the side yard, about 3 ft from the property line, to fit a widened driveway. The first plan was a gravity segmental block wall — cheaper, no engineer, and the kind of project a landscaper could knock out fast.

The math didn't work. At 5 ft tall, the gravity rule of thumb called for a base around 2.5-3.5 ft wide. Add the required drainage gravel behind it and there was almost nothing left before hitting the property line, and the new driveway slab itself would sit as a surcharge right behind the wall — which gravity sizing doesn't account for. The homeowner switched to a reinforced cantilever design: an 8 in stem, a footing that fit within the available space, and rebar sized by an engineer for the driveway surcharge. It cost more upfront, roughly 40% more than the gravity estimate, but it was the only design that physically fit the lot and handled the load safely.

That's a common story: gravity feels cheaper right up until the site geometry says no. If you're unsure which camp your project falls into, a quick chat with a professional through find a pro can save a redesign later.

Common misconceptions

"Bigger blocks make a gravity wall stronger, so I can skip the base width math." Block size affects unit weight per course, but stability still comes down to overall base width relative to height. A wall of huge boulders stacked narrow can still slide or tip.

"Cantilever walls don't need drainage since the footing does the work." Every wall type needs drainage. Hydrostatic pressure from trapped water behind a wall can double or triple the design load regardless of whether the wall resists it with mass or leverage.

"If it's under 4 ft I never need a permit, full stop." The 4 ft figure is a common code threshold, but it's measured from the bottom of the footing, not just the visible face, and some municipalities set stricter local limits or require a permit regardless of height near a slope or structure. Always confirm with your local building department, a point covered in the engineering basics guide.

"Timber and CMU block are basically interchangeable." Both can be gravity systems, but they age differently and have different practical height ceilings — our CMU wall guide and the broader material comparison go through the trade-offs if you're still choosing a material rather than a wall type.

Most residential walls never need to have this argument at all — they're short enough that gravity is the obvious, cheap answer. The decision only gets interesting once height, space, or load push you toward the edge of what mass alone can handle, and that's exactly the point where it pays to run the numbers rather than guess.
